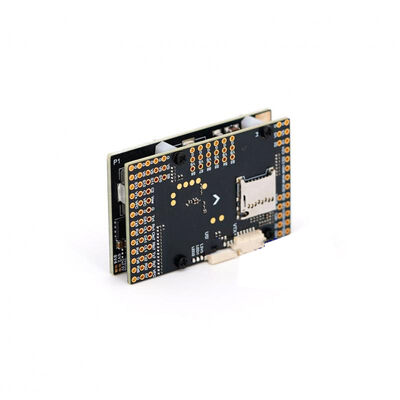

TBS Lucid H7 FC Flight Controller for FPV Racing drone

Product Description:

TBS Lucid H7 Wing FC
Fixed-wing and VTOL flight controller with powerful microprocessor,dual gyro, unlimited peripheral connectivity and reliable performance
For seasoned wing pilots, affordable highquality flight controllers have been far and between. Shortcomings in either supported software,redundancy on hardware,or price, have made it hard to pick a clear contender for your next project.
Introducing the TBS Lucid H7 Wing FC.Full-featured, versatile,reliable, and affordable. Behold! Our giant list of specs:
Specifications:
.MCU:STM32H743VIH6,480MHz,2MBFlash.Input voltage:8V-50.4V(3-12S)
.Output power:8A cont./10A peak BEC.5V,6V,8.4V(selectable).Channels:13x PWM(including LED).Gyro:ICM42688x2(SPI1 & SPI4).Baro:DPS310(I2C2)
.Peripherals:7x UART,2x I2C,1x CAN
.Measurements:6x ADC(Vbat,Current,CB2,CU2,RSSI,AirSpeed).High speed ports:MicroSD BlackBox, SPI3 on pin headers
.Analog FPV:Switchable dual camera inputs, AT7456E OSD, 5V/9V/12V support at 5A(selectable)
.Digital FPV:"DJI"-connector with SBUS and OSD communication.Current sensor:165A cont./ 240A peak.FC BEC:5V 3A cont.(for FC&peripherals).FPV BEC:9V/12V 5A(selectable).Dimensions:54x36x13mm

Features:

Tech details:
.Battery Voltage Sensor:1K:20K(Scale2100in INAV,BATT_VOLT_MULT 21.0 in ArduPilot).ADC VB2 voltage divider:1K:20K
.ADC AirSpeed voltage divider:20K:20K.ArduPilot Target:TBS_LUCID_H7_WING.INAV Target:TBA
.Betaflight Target:TBA
Package contains
.1x TBS Lucid H7 Wing FC & PDB (sandwiched boards).1x USB(Type-C)/ buzzer extender board
.1x10cm JST-SH-6P to JST-SH-6P cable for USB Extender.1x25cm JST-SH-6P to JST-SH-6P cable foror HD Systems.2x20cm JST-GH-4P to JST-GH-4P cable for CAN &I2Cport.1x330uF 63V electrolytic capacitor.2.54pin headers x120(unsoldered!)

Applications:

FPV RC UAV Drone

Customization:

Please provide your customization requirements.

Packing and Shipping:

Standard packaging
